TRAXXAS XRT 8S 40CR Carbon Steel M1.5 Spur Gear 33T + Motor Gear 12T - GPM TXM1233TS [TXM1233TS]

Price:

USD$35.90

Brand:

GPM

Model:

TXM1233TS

GTIN:

4894538381542

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Write a review

alt="TRAXXAS XRT 8S 40CR Carbon Steel M1.5 Spur Gear 33T + Motor Gear 12T - GPM TXM1233TS" title="TRAXXAS XRT 8S 40CR Carbon Steel M1.5 Spur Gear 33T + Motor Gear 12T - GPM TXM1233TS"

Description

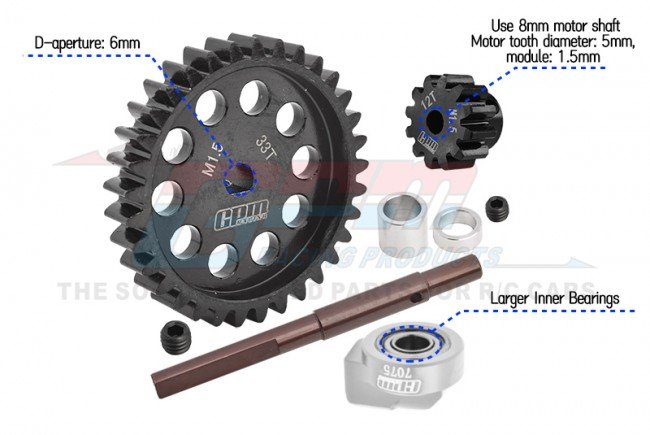

This item is suitable for TRAXXAS XMAXX, TRAXXAS X MAXX 8S Monster Truck and 1/6 4WD XRT 8S-78086-4

Packing Includes:
Motor gear 12T-1pc
4x5 Screw shaft-1pc
Spur gear 33T M1.5-1pc
Cush drive input shaft-1pc
Bearing 6x13x5-1pc
shim 6x8x3.5-1pc
shim 6x8x7.5-1pc
Set Screws 5x5-1pc
Aluminum 7075 mount-1pc

The upgraded 40Cr Carbon metal Spur Gear 33T M1.5 and big gear shaft, bearing and aluminum 7075 fixed mount eradicate three-point support, which usually much better than the very first two-point help you with protection and transmission effect.
Motor enamel diameter: 5mm, D-shaped engine gear opening, module: 1.5mm, range teeth: 12T,tooth area width: 9mm.
Spur Gear 33T diameter: 6mm, D-shaped motor gear space, module: 1.5mm, number of teeth: 33T,tooth area width: 14mm,Outer diameter: 52.4mm.

Suitable Model:
TRAXXAS-1/5 4WD X-MAXX 6S
TRAXXAS-1/5 ELECTRICAL 4WD X-MAXX 8S MONSTER TRUCK
TRAXXAS-1/6 4WD XRT 8S-78086-
